产品详细
产品介绍
规格尺寸
性能曲线
| 型号 | 功率 | 进/出口径( " ) | 最大流量 Qmax(L/min) | 流量范围 Q range | 最大扬程 Hmax(m) | 扬程范围 H range | ||
| KW | HP | DN1 | DN2 | |||||
| MKP62+EC1 | 0.37 | 0.5 | 1" | 1" | 40 | 5-40 | 40 | 38-5.5 |
| 型号 | 进/出口径( " ) | 尺寸(mm) | |||||||||||
| 单相 | DN1 | DN2 | a | w | m | S | f | n | n1 | hi | h | i | I |
| MKP50-EC1(P) | 1" | 1" | 40 | 60 | 57 | 7 | 230 | 118 | 100 | 63 | 130 | 17 | 334 |
| MKP61-EC1(P) | 1" | 1" | 45 | 65 | 80 | 7 | 255 | 120 | 100 | 63 | 140 | 20 | 344 |
| MKP62-EC1(P) | 1" | 1" | 44 | 67 | 75 | 7 | 253 | 120 | 98 | 63 | 138 | 20 | 342 |
| MKP63-EC1(P) | 1" | 1" | 45 | 60 | 57 | 7 | 230 | 118 | 100 | 63 | 138 | 17 | 342 |
| MKP70-1-EC1(P) | 1" | 1" | 47 | 66 | 90 | 7 | 285 | 137 | 110 | 71 | 155 | 20 | 360 |
| MKP80-1-EC1(P) | 1" | 1" | 56 | 77 | 90 | 7 | 305 | 137 | 110 | 71 | 163 | 22 | 367 |

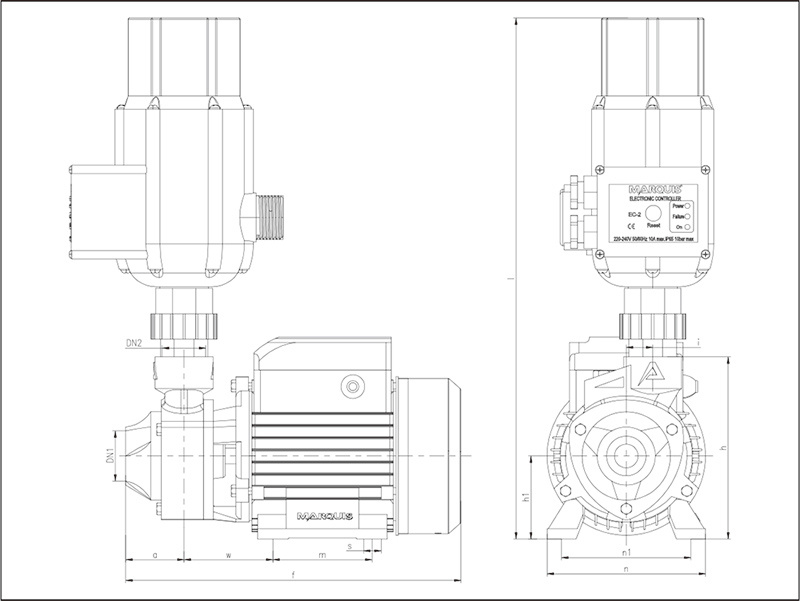

| 型号 | 进/出口径( " ) | 尺寸(mm) | |||||||||||
| 单相 | DN1 | DN2 | a | w | m | S | f | n | n1 | hi | h | i | I |
| MKP50-EC2(P) | 1" | 1" | 40 | 60 | 57 | 7 | 230 | 118 | 100 | 63 | 130 | 17 | 386 |
| MKP61-EC2(P) | 1" | 1" | 45 | 65 | 80 | 7 | 255 | 120 | 100 | 63 | 140 | 20 | 396 |
| MKP62-EC2(P) | 1" | 1" | 44 | 67 | 75 | 7 | 253 | 120 | 98 | 63 | 138 | 20 | 394 |
| MKP63-EC2(P) | 1" | 1" | 45 | 60 | 57 | 7 | 230 | 118 | 100 | 63 | 138 | 17 | 394 |
| MKP70-1-EC2(P) | 1" | 1" | 47 | 66 | 90 | 7 | 285 | 137 | 110 | 71 | 155 | 20 | 411 |
| MKP80-1-EC2(P) | 1" | 1" | 56 | 77 | 90 | 7 | 305 | 137 | 110 | 71 | 163 | 22 | 419 |

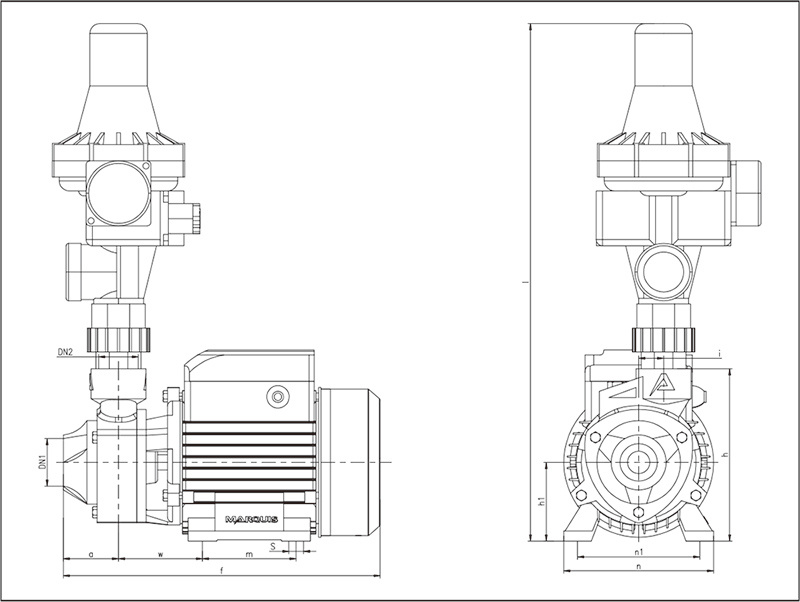

| 型号 | 进/出口径( " ) | 尺寸(mm) | |||||||||||
| 单相 | DN1 | DN2 | a | w | m | s | f | n | n1 | hi | h | i | I |
| MKP50-EC3(P) | 1" | 1" | 40 | 60 | 57 | 7 | 230 | 118 | 100 | 63 | 130 | 17 | 406 |
| MKP61-EC3(P) | 1" | 1" | 45 | 65 | 80 | 7 | 255 | 120 | 100 | 63 | 140 | 20 | 416 |
| MKP62-EC3(P) | 1" | 1" | 44 | 67 | 75 | 7 | 253 | 120 | 98 | 63 | 138 | 20 | 414 |
| MKP63-EC3(P) | 1" | 1" | 45 | 60 | 57 | 7 | 230 | 118 | 100 | 63 | 138 | 17 | 414 |
| MKP70-1-EC3(P) | 1" | 1" | 47 | 66 | 90 | 7 | 285 | 137 | 110 | 71 | 155 | 20 | 431 |
| MKP80-1-EC3(P) | 1" | 1" | 56 | 77 | 90 | 7 | 305 | 137 | 110 | 71 | 163 | 22 | 439 |
| 型号 | 件数 | 毛重(kg) | 净重(kg) | 体积(m³) | 长(cm) | 宽(cm) | 高(cm) |
| MKP50-EC1(P) | 1 | 5.8 | 5.3 | 0.016 | 35.3 | 23.3 | 19.0 |
| MKP50-EC2(P) | 1 | 5.8 | 5.3 | 0.016 | 35.3 | 23.3 | 19.0 |
| MKP50-EC3(P) | 1 | 5.8 | 5.3 | 0.016 | 35.3 | 23.3 | 19.0 |
| MKP61-EC1(P) | 1 | 6.9 | 6.4 | 0.021 | 34.5 | 28.5 | 21.0 |
| MKP61-EC2(P) | 1 | 6.9 | 6.4 | 0.017 | 33.0 | 28.5 | 18.0 |
| MKP61-EC3(P) | 1 | 6.9 | 6.4 | 0.016 | 31.5 | 28.5 | 18.0 |
| MKP62-EC1(P) | 1 | 7.1 | 6.6 | 0.021 | 34.5 | 28.5 | 21.0 |
| MKP62-EC2(P) | 1 | 7.1 | 6.6 | 0.017 | 33.0 | 28.5 | 18.0 |
| MKP62-EC3(P) | 1 | 7.1 | 6.6 | 0.016 | 31.5 | 28.5 | 18.0 |
| MKP63-EC1(P) | 1 | 7.6 | 7.1 | 0.021 | 34.5 | 28.5 | 21.0 |
| MKP63-EC2(P) | 1 | 7.6 | 7.1 | 0.017 | 33.0 | 28.5 | 18.0 |
| MKP63-EC3(P) | 1 | 7.6 | 7.1 | 0.016 | 31.5 | 28.5 | 18.0 |
| MKP70-1-EC1(P) | 1 | 10.2 | 9.7 | 0.010 | 30.5 | 16.0 | 20.0 |
| MKP70-1-EC2(P) | 1 | 10.2 | 9.7 | 0.021 | 40.8 | 24.3 | 21.5 |
| MKP70-1-EC3(P) | 1 | 10.2 | 9.7 | 0.021 | 40.8 | 24.3 | 21.5 |
| MKP80-1-EC1(P) | 1 | 20.1 | 19.0 | 0.024 | 43.6 | 24.7 | 22.2 |
| MKP80-1-EC2(P) | 1 | 20.1 | 19.0 | 0.024 | 43.6 | 24.7 | 22.2 |
| MKP80-1-EC3(P) | 1 | 20.1 | 19.0 | 0.024 | 43.6 | 24.7 | 22.2 |
