产品详细
产品介绍
规格尺寸

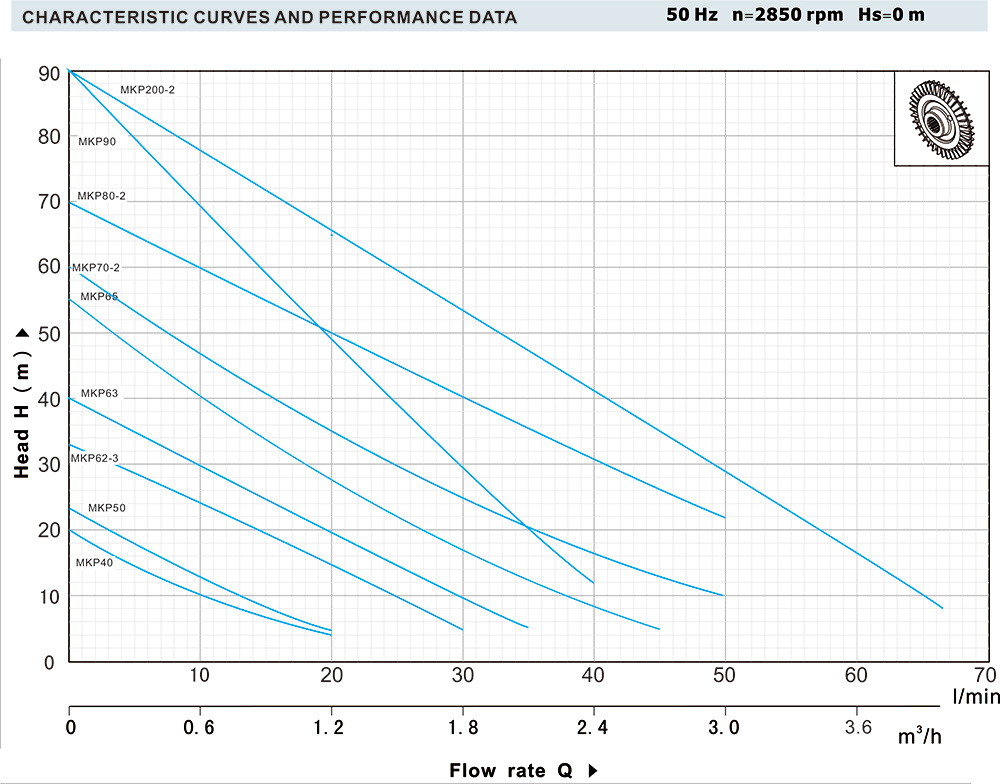

性能曲线
| 型号 | 功率 | 进/出口径( " ) | 最大流量 Qmax(L/min) | 流量范围 Q range | 最大扬程 Hmax(m) | 扬程范围 H range | ||
| KW | HP | DN1 | DN2 | |||||
| MKP200 | 1.5 | 2 | 1" | 1" | 65 | 5-60 | 90 | 86-10 |
| MKP200-2 | 1.5 | 2 | 1" | 1" | 65 | 5-60 | 90 | 86-10 |
| MKP50 | 0.12 | 0.16 | 1" | 1" | 24 | 5-24 | 24 | 5-22 |
| MKP60-1 | 0.37 | 0.5 | 1" | 1" | 40 | 5-40 | 40 | 38-5.5 |
| MKP61 | 0.37 | 0.5 | 1" | 1" | 30 | 5-30 | 30 | 26-5.5 |
| MKP62 | 0.37 | 0.5 | 1" | 1" | 40 | 5-40 | 40 | 38-5.5 |
| MKP62-1 | 0.37 | 0.5 | 1" | 1" | 33 | 5-33 | 33 | 30-5 |
| MKP62-2 | 0.37 | 0.5 | 1" | 1" | 33 | 5-33 | 33 | 30-5 |
| MKP62-3 | 0.37 | 0.5 | 1" | 1" | 40 | 5-40 | 40 | 38-5 |
| MKP63 | 0.42 | 0.55 | 1" | 1" | 40 | 10-38 | 40 | 35-8 |
| MKP63S | 0.42 | 0.55 | 1" | 1" | 40 | 10-38 | 40 | 35-8 |
| MKP65 | 0.5 | 0.7 | 1" | 1" | 50 | 5-50 | 55 | 50-8 |
| MKP70-2 | 0.55 | 0.75 | 1" | 1" | 50 | 5-50 | 65 | 62-10 |
| MKP80-2 | 0.75 | 1 | 1" | 1" | 50 | 5-50 | 70 | 66-10 |
| MKP90 | 0.75 | 1 | 3/4" | 3/4" | 40 | 5-40 | 90 | 86-10 |
| 型号 | 进/出口径( " ) | 尺寸(mm) | ||||||||||||
| 单相 | 三相 | DN1 | DN2 | a | f | h | hi | i | I | m | n | n1 | w | S |
| MKP40 | MK40 | 1" | 1" | 40 | 230 | 155 | 63 | 17 | 130 | 57 | 118 | 100 | 60 | 7 |
| MKP50 | MK50 | 1" | 1" | 40 | 230 | 155 | 63 | 17 | 130 | 57 | 118 | 100 | 60 | 7 |
| MKP62-3 | MK62-3 | 1" | 1" | 45 | 255 | 155 | 63 | 20 | 138 | 80 | 118 | 100 | 64 | 7 |
| MKP63 | MK63 | 1" | 1" | 45 | 220 | 155 | 63 | 17 | 138 | 57 | 118 | 100 | 60 | 7 |
| MKP65 | MK65 | 1" | 1" | 47 | 266 | 157 | 63 | 22 | 144 | 89 | 117 | 96 | 68.5 | 7 |
| MKP70-2 | MK70-2 | 1" | 1" | 48 | 288 | 182 | 71 | 20 | 160 | 68 | 137 | 110 | 77 | 7 |
| MKP80-2 | MK80-2 | 1" | 1" | 56 | 308 | 182 | 71 | 22 | 163 | 68 | 137 | 110 | 89 | 7 |
| MKP90 | MK90 | 3/4" | 3/4" | 56 | 306 | 182 | 71 | 20 | 160 | 68 | 137 | 110 | 97 | 7 |
| MKP200-2 | MK200-2 | 1" | 1" | 56 | 350 | 212 | 85 | 19 | 180 | 108 | 154 | 214 | 92 | 7 |
| 型号 | 件数 | 毛重(kg) | 净重(kg) | 体积(m³) | 长(cm) | 宽(cm) | 高(cm) |
| MK40 | 1 | 4.3 | 4 | 0.007 | 25.0 | 15.0 | 17.5 |
| MK50 | 1 | 5.4 | 5.16 | 0.007 | 25.0 | 15.0 | 17.5 |
| MK62-3 | 1 | 5.6 | 5.3 | 0.007 | 28.0 | 14.5 | 17.5 |
| MK63 | 1 | 6.1 | 5.8 | 0.007 | 25.0 | 15.0 | 17.5 |
| MK65 | 1 | 8.7 | 8.3 | 0.010 | 30.5 | 16.0 | 20.0 |
| MK70-2 | 1 | 10.76 | 10.36 | 0.011 | 33.3 | 16.4 | 20.7 |
| MK80-2 | 1 | 18.62 | 17.46 | 0.021 | 39.0 | 22.0 | 25.0 |
| MK90 | 1 | 11.2 | 10.5 | 0.011 | 32.6 | 16.4 | 21 |
| MK200-2 | 1 | 18.6 | 18 | 0.017 | 37.2 | 19 | 24 |
| 型号 | 功率 | 流量 Q |
m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4 | ||
| 单相 | 三相 | KW | HP | I /min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 66.7 | |
| MKP40 | MK40 | 0.12 | 0.16 | 扬程 H m |
20 | 15 | 11 | 8 | 5 | 4 | |||||||||
| MKP50 | MK50 | 0.12 | 0.16 | 23 | 19 | 14 | 10 | 7 | 5 | ||||||||||
| MKP62-3 | MK62-3 | 0.37 | 0.50 | 33 | 29 | 24 | 20 | 15 | 11 | 5 | |||||||||
| MKP63 | MK63 | 0.42 | 0.55 | 40 | 34 | 17 | 22 | 17 | 13 | 10 | 5 | ||||||||
| MKP65 | MK65 | 0.50 | 0.70 | 55 | 48 | 42 | 36 | 30 | 24 | 19 | 14 | 10 | 5 | ||||||
| MKP70-2 | MK70-2 | 0.55 | 0.75 | 60 | 56 | 50 | 43 | 36 | 30 | 22 | 17 | 13 | 9 | 5 | |||||
| MKP80-2 | MK80-2 | 0.75 | 1 | 70 | 63 | 55 | 47 | 40 | 33 | 26 | 20 | 16 | 11 | 6 | |||||
| MKP90 | MK90 | 0.75 | 1 | 90 | 79 | 66 | 54 | 43 | 31 | 24 | 18 | 7 | |||||||
| MKP200-2 | MK200-2 | 1.50 | 2 | 90 | 81 | 76 | 71 | 65 | 61 | 56 | 51 | 45 | 39 | 34 | 27 | 20 | 7 | ||
