产品介绍
规格尺寸
性能曲线
| 型号 | 功率 | 进/出口径( " ) | 最大流量 Qmax(L/min) | 流量范围 Q range | 最大扬程 Hmax(m) | 扬程范围 H range | ||
| KW | HP | DN1 | DN2 | |||||
| MQS123 | 0.30 | 0.40 | 1" | 1" | 27 | 27-5 | 27 | 25-2 |
| MQS125 | 0.25 | 0.33 | 1" | 1" | 36 | 10-30 | 33 | 30-10 |
| MQS125-2 | 0.25 | 0.33 | 1" | 1" | 27 | 27-5 | 27 | 25-5 |
| MQS127-2 | 0.33 | 0.50 | 1" | 1" | 40 | 5-30 | 40 | 35-5 |
| MQS128 | 0.37 | 0.50 | 1" | 1" | 36 | 10-30 | 33 | 30-10 |
| MQS128-2 | 0.37 | 0.50 | 1" | 1" | 33 | 5-33 | 33 | 30-5 |
| MQS128-3 | 0.37 | 0.50 | 1" | 1" | 33 | 5-33 | 33 | 30-5 |
| MQS228-2 | 0.45 | 0.60 | 1" | 1" | 45 | 5-40 | 42 | 40-5 |
| MQS328 | 0.55 | 0.75 | 1" | 1" | 45 | 5-45 | 52 | 50-5.5 |
| MQS428 | 0.75 | 1.00 | 1" | 1" | 55 | 5-55 | 60 | 55-5.5 |

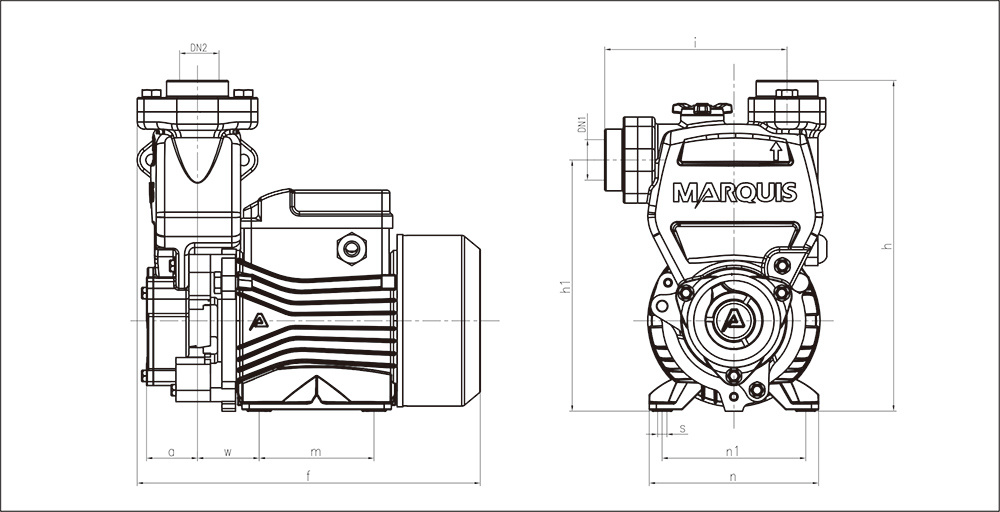

| 型号 | 进/出口径( " ) | 尺寸(mm) | |||||||||||
| 单相 | 三相 | DN1 | DN2 | a | f | h | hi | i | m | n | n1 | w | S |
| MQS121-2 | - | 1" | 1" | 32 | 236 | 233 | 175 | 127 | 80 | 118 | 100 | 46 | 7 |
| MQS123 | - | 1" | 1" | 32 | 238 | 233 | 179 | 136 | 80 | 118 | 100 | 52 | 7 |
| MQS125-2 | - | 1" | 1" | 39 | 273 | 252 | 189 | 145 | 90 | 137 | 110 | 62 | 7 |
| MQS127-2 | - | 1" | 1" | 39 | 274 | 272 | 209 | 145 | 90 | 137 | 110 | 62 | 7 |
| 型号 | 件数 | 毛重(kg) | 净重(kg) | 体积(m³) | 长(cm) | 宽(cm) | 高(cm) |
| MQS121-2 | 1 | 5.3 | 5.1 | 0.009 | 23.5 | 17 | 22 |
| MQS123 | 1 | 6.87 | 6.62 | 0.01 | 25.5 | 18 | 23 |
| MQS125-2 | 1 | 6.72 | 6.5 | 0.01 | 23 | 19 | 23.5 |
| MQS127-2 | 1 | 6.92 | 6.7 | 0.011 | 25.5 | 19 | 23.5 |

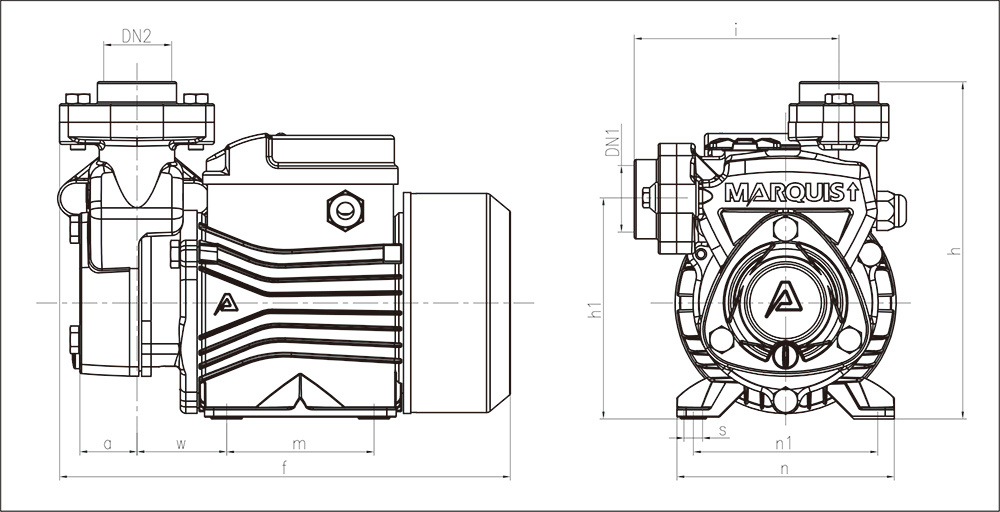

| 型号 | 进/出口径( " ) | 尺寸(mm) | |||||||||||
| 单相 | 三相 | DN1 | DN2 | a | f | h | hi | i | m | n | n1 | w | S |
| MQS128-3 | - | 1" | 1" | 32 | 236 | 233 | 175 | 127 | 80 | 118 | 100 | 46 | 7 |
| MQS228-2 | - | 1" | 1" | 32 | 238 | 233 | 179 | 136 | 80 | 118 | 100 | 52 | 7 |
| MQS328 | - | 1" | 1" | 39 | 273 | 252 | 189 | 145 | 90 | 137 | 110 | 62 | 7 |
| MQS428 | - | 1" | 1" | 39 | 274 | 272 | 209 | 145 | 90 | 137 | 110 | 62 | 7 |
| 型号 | 件数 | 毛重(kg) | 净重(kg) | 体积(m³) | 长(cm) | 宽(cm) | 高(cm) |
| MQS128-3 | 1 | 7.02 | 6.8 | 0.013 | 25.5 | 19.5 | 26 |
| MQS228-2 | 1 | 10.94 | 10.7 | 0.013 | 27 | 19.5 | 25.5 |
| MQS328 | 1 | 12.48 | 12.1 | 0.017 | 30 | 20.5 | 28.5 |
| MQS428 | 1 | 13.84 | 13.5 | 0.018 | 30 | 20.5 | 30 |

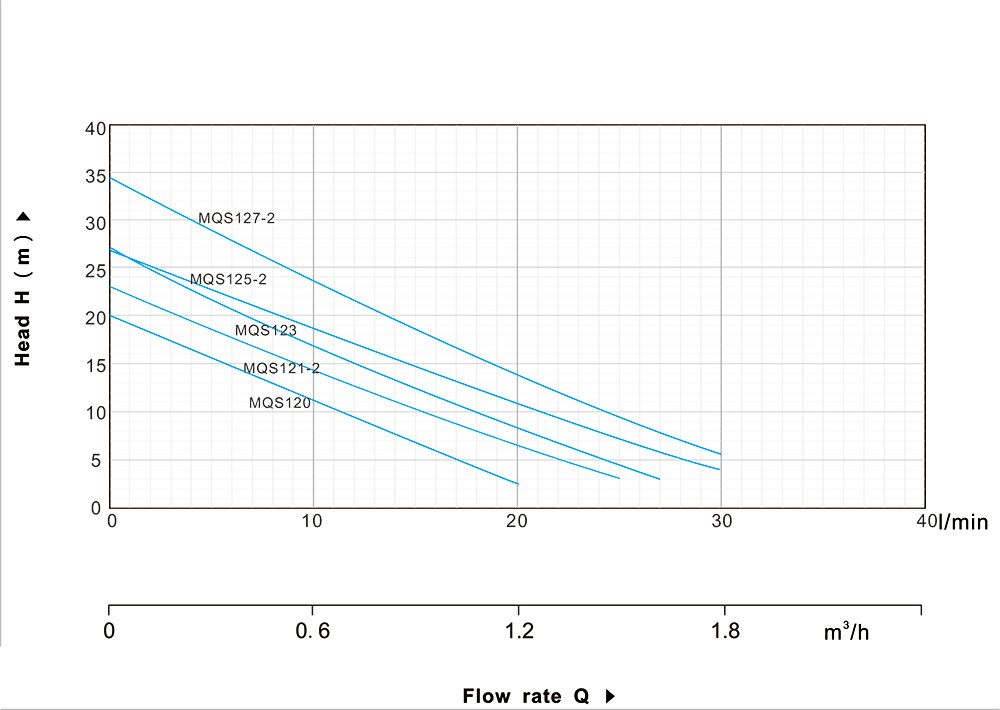

| 型号 | 功率 | 流量 Q |
m³ /h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.6 | 1.8 | ||
| 单相 | 三相 | KW | HP | I / min | 0 | 5 | 10 | 15 | 20 | 25 | 27 | 30 | |
| MQS120 | - | 0.12 | 0.16 | 扬程 H m |
20 | 17 | 13 | 9 | 6 | 2.5 | |||
| MQS121-2 | - | 0.25 | 0.33 | 23 | 19 | 14 | 10 | 7 | 3 | 3 | |||
| MQS123 | - | 0.30 | 0.40 | 27 | 22 | 17 | 12 | 9 | 5 | 6 | 3 | ||
| MQS125-2 | - | 0.25 | 0.33 | 27 | 23 | 18 | 14 | 11 | 9 | 9 | 4 | ||
| MQS127-2 | - | 0.33 | 0.50 | 35 | 29 | 23 | 18 | 14 | 11 | ||||

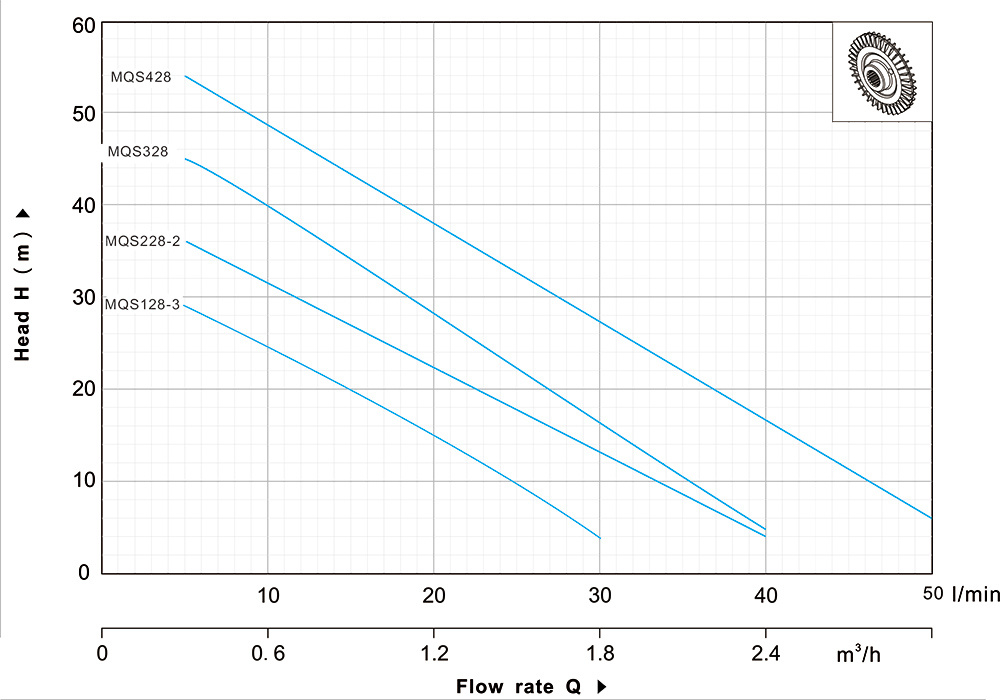

| 型号 | 功率 | 流量 Q |
m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | ||
| 单相 | 三相 | KW | HP | l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |
| MQS128-3 | - | 0.37 | 0.50 | 扬程 H m |
33 | 29 | 24 | 19 | 15 | 11 | 4 | |||||
| MQS228-2 | - | 0.45 | 0.60 | 40 | 36 | 31 | 25 | 21 | 17 | 13 | 9 | 4 | ||||
| MQS328 | - | 0.55 | 0.75 | 50 | 45 | 38 | 31 | 27 | 23 | 18 | 13 | 5 | ||||
| MQS428 | - | 0.75 | 1.00 | 60 | 54 | 47 | 41 | 35 | 29 | 24 | 21 | 14 | 10 | 6 | ||
