产品详细
产品介绍

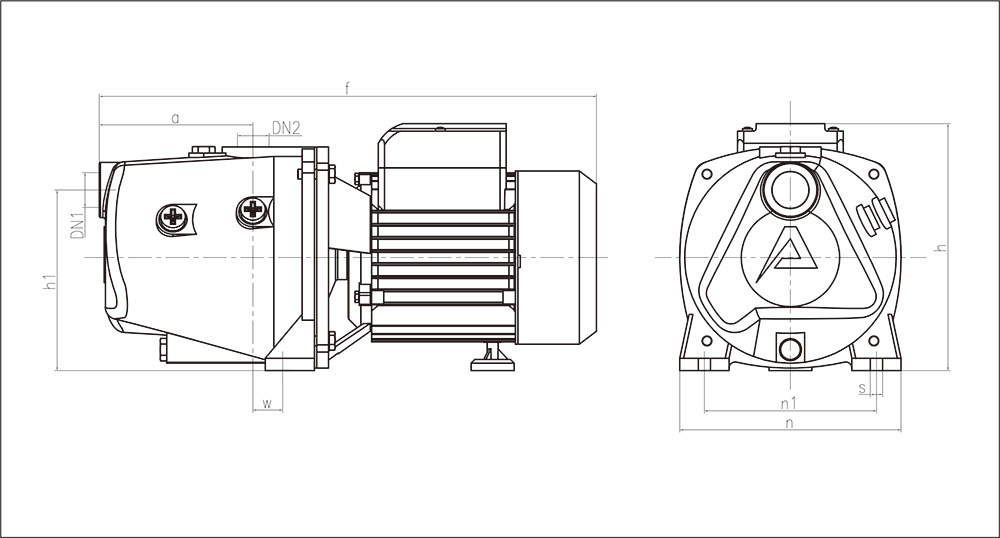

规格尺寸

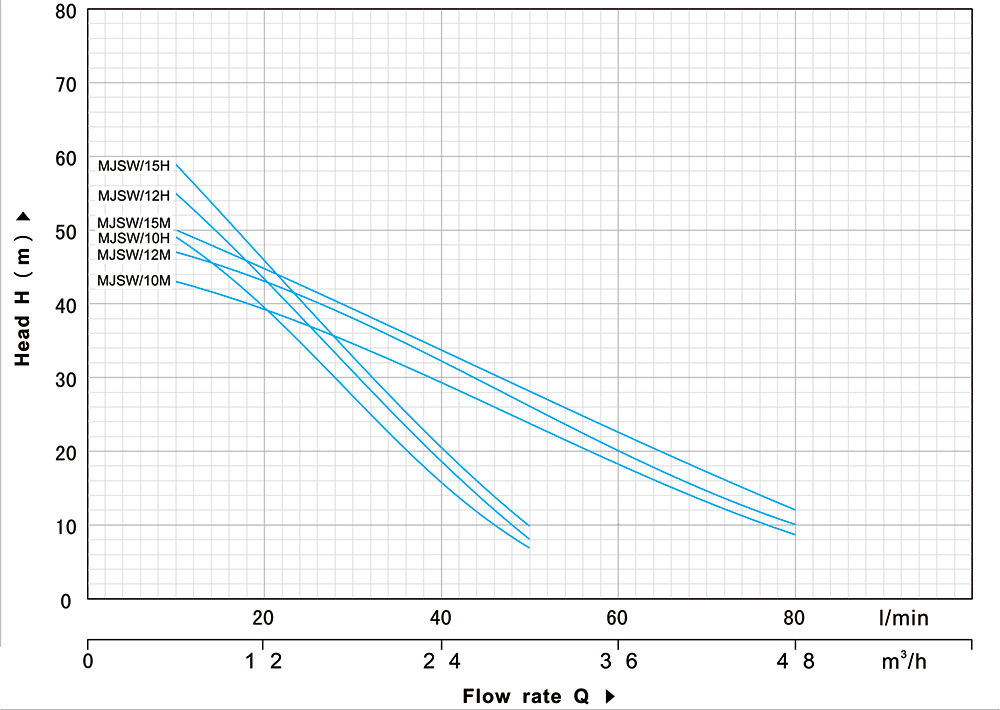

性能曲线
| 型号 | 功率 | 进/出口径( " ) | 最大流量 Qmax(L/min) | 流量范围 Q range | 最大扬程 Hmax(m) | 扬程范围 H range | ||
| KW | HP | DN1 | DN2 | |||||
| MJSW/15M | 1.1 | 1.5 | 1" | 1" | 85 | 5-80 | 55 | 53-27 |
| 型号 | 进/出口径( " ) | 尺寸(mm) | ||||||||
| 单相 | DN1 | DN2 | a | f | h | hi | n | n1 | w | S |
| MJSW/10H | 1" | 1" | 126 | 406 | 200 | 147 | 180 | 140 | 25 | 10 |
| MJSW/12H | 1" | 1" | 126 | 406 | 200 | 147 | 180 | 140 | 25 | 10 |
| MJSW/15H | 1" | 1" | 126 | 406 | 200 | 147 | 180 | 140 | 25 | 10 |
| MJSW/10M | 1" | 1" | 126 | 406 | 200 | 147 | 180 | 140 | 25 | 10 |
| MJSW/12M | 1" | 1" | 126 | 406 | 200 | 147 | 180 | 140 | 25 | 10 |
| MJSW/15M | 1" | 1" | 126 | 406 | 200 | 147 | 180 | 140 | 25 | 10 |
| 型号 | 件数 | 毛重(kg) | 净重(kg) | 体积(m³) | 长(cm) | 宽(cm) | 高(cm) |
| MJSW/10H | 1 | 15.1 | 14.9 | 0.024 | 44.5 | 22 | 25 |
| MJSW/12H | 1 | 15.3 | 15.0 | 0.024 | 44.5 | 22 | 25 |
| MJSW/15H | 1 | 15.6 | 15.1 | 0.024 | 44.5 | 22 | 25 |
| MJSW/10M | 1 | 15.1 | 14.9 | 0.024 | 44.5 | 22 | 25 |
| MJSW/12M | 1 | 15.3 | 15.0 | 0.024 | 44.5 | 22 | 25 |
| MJSW/15M | 1 | 15.6 | 15.1 | 0.024 | 44.5 | 22 | 25 |
| 型号 | 功率 | 吸入升程 | 流量 Q |
m³/h | 0 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.0 | 3.6 | 4.2 | 4.8 | |
| 单相 | KW | HP | Hs m | l/min | 0 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | |
| MJSW/10H | 0.75 | 1 | 8 | 扬程 H m |
56 | 49 | 44 | 37 | 31 | 26 | 21 | 17 | 11 | 7 | ||||
| MJSW/12H | 0.9 | 1.25 | 8 | 64 | 55 | 48 | 41 | 35 | 29 | 23 | 19 | 13 | 8 | |||||
| MJSW/15H | 1.1 | 1.5 | 8 | 70 | 59 | 53 | 46 | 38 | 33 | 25 | 21 | 15 | 10 | |||||
| MJSW/10M | 0.75 | 1 | 8 | 46 | 43 | 41 | 39 | 35 | 33 | 31 | 28 | 25 | 21 | 17 | 11 | 9 | ||
| MJSW/12M | 0.9 | 1.25 | 8 | 50 | 47 | 45 | 41 | 39 | 35 | 33 | 31 | 28 | 23 | 19 | 13 | 10 | ||
| MJSW/15M | 1.1 | 1.5 | 8 | 55 | 50 | 46 | 44 | 42 | 38 | 36 | 33 | 31 | 29 | 22 | 16 | 12 | ||
