产品详细
产品介绍
规格尺寸

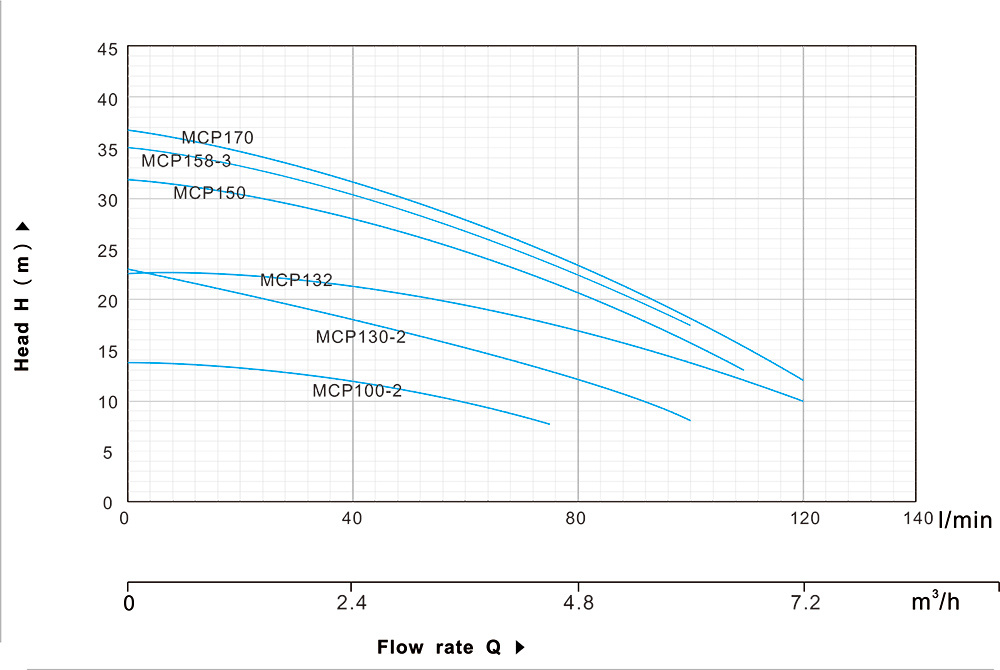

性能曲线
| 型号 | 功率 | 进/出口径( " ) | 最大流量 Qmax(L/min) | 流量范围 Q range | 最大扬程 Hmax(m) | 扬程范围 H range | ||
| KW | HP | DN1 | DN2 | |||||
| MCP100 | 0.25 | 0.33 | 1" | 1" | 70 | 10-60 | 16 | 15-7 |
| MCP100-2 | 0.25 | 0.33 | 1" | 1" | 70 | 10-60 | 16 | 15-7 |
| MCP130 | 0.37 | 0.5 | 1" | 1" | 75 | 10-68 | 22 | 20-16 |
| MCP130-2 | 0.37 | 0.5 | 1" | 1" | 75 | 10-68 | 22 | 20-16 |
| MCP132 | 0.55 | 0.75 | 1" | 1" | 120 | 10-120 | 23 | 20-12 |
| MCP150 | 0.75 | 1 | 1" | 1" | 120 | 20-110 | 34 | 33-25 |
| MCP158-2 | 0.75 | 1 | 1" | 1" | 110 | 20-100 | 34 | 33-25 |
| MCP158-2B | 0.75 | 1 | 1" | 1" | 120 | 20-110 | 34 | 33-25 |
| MCP158-2X | 0.75 | 1 | 1" | 1" | 120 | 20-120 | 30 | 29-25 |
| MCP158-3 | 0.75 | 1 | 1" | 1" | 120 | 20-110 | 34 | 33-25 |
| MCP170 | 1.1 | 1.5 | 1" | 1" | 130 | 30-120 | 41 | 38-22 |
| MCP25/160A | 1.5 | 2 | 1.5" | 1" | 150 | 50-150 | 35 | 34-18 |
| MCP25/160B | 1.1 | 1.5 | 1.5" | 1" | 250 | 50-200 | 33 | 32.5-18 |
| MCP79 | 0.75 | 1 | 1" | 1" | 90 | 20-80 | 36 | 34-18 |
| 型号 | 进/出口径( " ) | 尺寸(mm) | |||||||||
| 单相 | 三相 | DN1 | DN2 | a | f | h | hi | n | n1 | w | S |
| MCP100-2 | — | 1" | 1" | 43 | 254 | 214 | 90 | 170 | 130 | 44 | 10 |
| MCP130-2 | — | 1" | 1" | 43 | 254 | 214 | 90 | 170 | 130 | 44 | 10 |
| MCP132 | — | 1" | 1" | 43 | 254 | 214 | 90 | 170 | 130 | 44 | 10 |
| MCP150 | — | 1" | 1" | 45 | 291 | 236 | 92 | 190 | 160 | 41 | 10 |
| MCP158-3 | — | 1" | 1" | 48 | 289 | 237 | 92 | 190 | 160 | 40 | 10 |
| MCP170 | — | 1" | 1" | 51 | 360 | 260 | 110 | 206 | 165 | 41 | 10 |
| 型号 | 件数 | 毛重(kg) | 净重(kg) | 体积(m³) | 长(cm) | 宽(cm) | 高(cm) |
| MCP100-2 | 1 | 8.44 | 8.2 | 0.013 | 29 | 19 | 24 |
| MCP130-2 | 1 | 9.56 | 9.3 | 0.013 | 29 | 19 | 24 |
| MCP132 | 1 | 9.58 | 9.31 | 0.013 | 29 | 19 | 24 |
| MCP150 | 1 | 13.82 | 13.5 | 0.018 | 32.1 | 21.7 | 26.2 |
| MCP158-3 | 1 | 14.7 | 14.04 | 0.018 | 32.1 | 21.7 | 26.2 |
| MCP170 | 1 | 20.9 | 20.5 | 0.026 | 38.6 | 23.1 | 28.7 |
| 型号 | 功率 | 流量 Q |
m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 5.4 | 6.0 | 6.6 | 7.2 | ||
| 单相 | 三相 | KW | HP | l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | |
| MCP100-2 | MC100-2 | 0.25 | 0.33 | 扬程 H m |
14 | 13.5 | 13 | 12.5 | 12 | 11 | 10 | 9 | ||||||
| MCP130-2 | MC130-2 | 0.37 | 0.5 | 23 | 22 | 20.5 | 19 | 18 | 17 | 15 | 14 | 11 | 10 | 8 | ||||
| MCP132 | MC132 | 0.55 | 0.75 | 23 | 22.5 | 22 | 21.5 | 21 | 20 | 19 | 18 | 17 | 16 | 14 | 12 | 9 | ||
| MCP150 | MC150 | 0.75 | 1 | 32 | 31 | 30 | 29 | 28 | 27 | 25 | 23 | 20 | 18 | 16 | 13 | |||
| MCP158-3 | MC158-3 | 0.75 | 1 | 36 | 34 | 32.5 | 31 | 29.5 | 28 | 27 | 25.5 | 23 | 22 | 15 | ||||
| MCP170 | MC170 | 1.1 | 1.5 | 38 | 36 | 34 | 32 | 30 | 29 | 28 | 26 | 24 | 23 | 18 | 15 | 11 | ||
