产品详细
产品介绍
规格尺寸
性能曲线
| 型号 | 功率 | 进/出口径( " ) | 最大流量 Qmax(L/min) | 流量范围 Q range | 最大扬程 Hmax(m) | 扬程范围 H range | ||
| KW | HP | DN1 | DN2 | |||||
| MCPH100 | 0.25 | 0.33 | 1" | 1" | 70 | 10-60 | 16 | 15-7 |
| MCPH130 | 0.37 | 0.5 | 1" | 1" | 75 | 10-68 | 22 | 20-16 |
| MCPH150 | 0.75 | 1.0 | 1" | 1" | 105 | 20-100 | 26 | 24-15 |
| MCPH150S | 0.75 | 1.0 | 1" | 1" | 120 | 20-110 | 29.5 | 29-18 |
| MCPH158 | 0.75 | 1.0 | 1" | 1" | 90 | 20-80 | 34 | 33-25 |

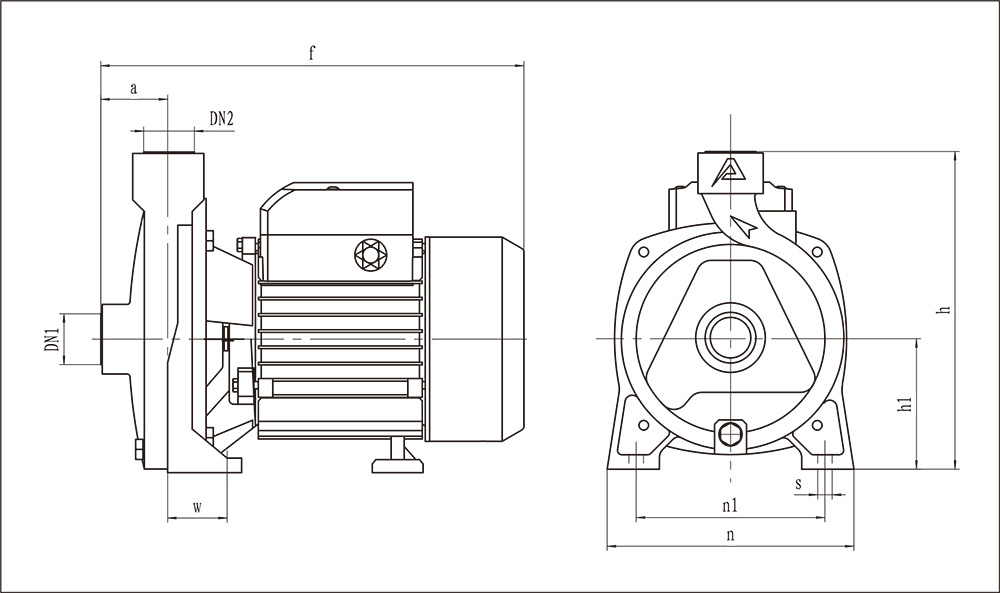

| 型号 | 进/出口径( " ) | 尺寸(mm) | |||||||||||||
| 单相 | 三相 | DN1 | DN2 | a | f | h | hi | n | n1 | W | S | ||||
| MCPH 100 | MCH100 | 1" | 1" | 42 | 261 | 218 | 90 | 170 | 130 | 41 | 10 | ||||
| MCPH 130 | MCH130 | 1" | 1" | 42 | 261 | 218 | 90 | 170 | 130 | 41 | 10 | ||||
| MCPH 150 | MCH150 | 1" | 1" | 45 | 291 | 236 | 92 | 190 | 160 | 41 | 10 | ||||
| MCPH 158-2 | MCH158-2 | 1" | 1" | 45 | 291 | 236 | 92 | 190 | 160 | 41 | 10 | ||||
| MCPH 170 | MCH170 | 1 1/4" | 1" | 51 | 359 | 261 | 110 | 206 | 165 | 45 | 10 | ||||
| MCPH25/160B | MCH25/160B | 1 1/2" | 1" | 45 | 359 | 261 | 110 | 206 | 165 | 45 | 10 | ||||
| MCPH25/160A | MCH25/160A | 1 1/2" | 1" | 45 | 359 | 261 | 110 | 206 | 165 | 45 | 10 | ||||
| 型号 | 件数 | 毛重(kg) | 净重(kg) | 体积(m³) | 长(cm) | 宽(cm) | 高(cm) | ||||||||
| MCPH 100 | 1 | 8.5 | 7.9 | 0.013 | 28.5 | 19.0 | 24.3 | ||||||||
| MCPH130 | 1 | 9.3 | 8.9 | 0.013 | 28.5 | 19.0 | 24.3 | ||||||||
| MCPH150 | 1 | 13.6 | 13 | 0.018 | 32.1 | 21.7 | 26.2 | ||||||||
| MCPH158 | 1 | 13.6 | 13 | 0.018 | 32.1 | 21.7 | 26.2 | ||||||||
| MCPH 170 | 1 | 20.5 | 20 | 0.026 | 38.6 | 23.1 | 28.7 | ||||||||
| MCPH25/160B | 1 | 21.5 | 21 | 0.026 | 38.6 | 23.1 | 28.7 | ||||||||
| MCPH25/160A | 1 | 20.4 | 19.9 | 0.026 | 38.6 | 23.1 | 28.7 | ||||||||

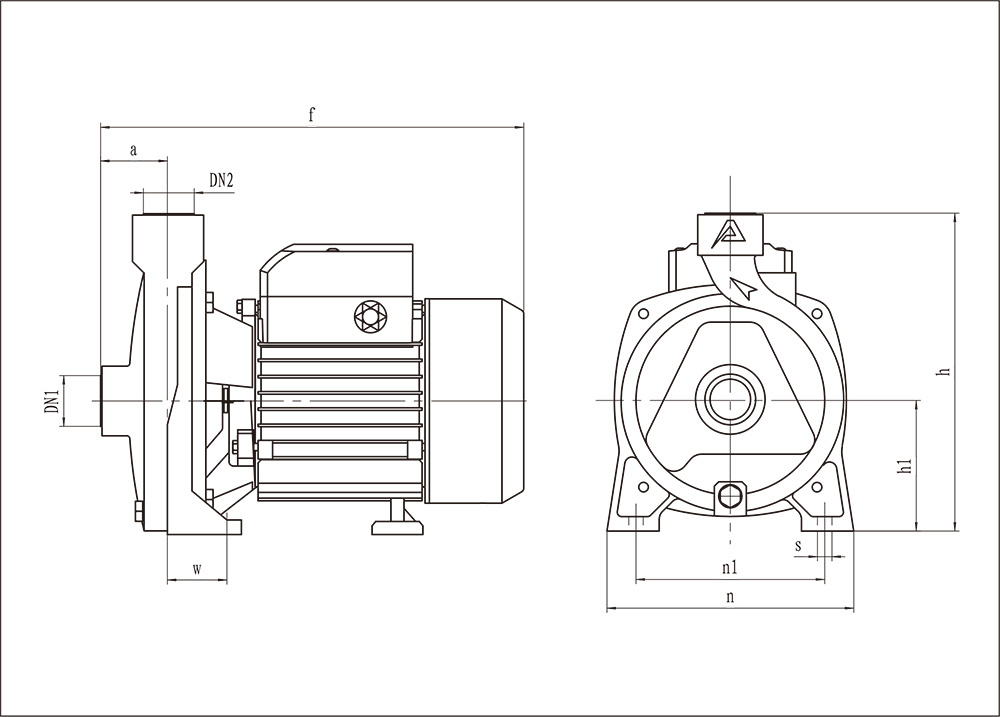

| 型号 | 进/出口径( " ) | 尺寸(mm) | |||||||||
| 单相 | 三相 | DN1 | DN2 | a | f | h | hi | n | n1 | w | s |
| MCPH150S | MCH150S | 1" | 1" | 45 | 281 | 236 | 92 | 190 | 160 | 41 | 10 |
| 型号 | 件数 | 毛重(kg) | 净重(kg) | 体积(m³) | 长(cm) | 宽(cm) | 高(cm) |
| MCPH150S | 1 | 13.6 | 13 | 0.018 | 32.1 | 21.7 | 26.2 |

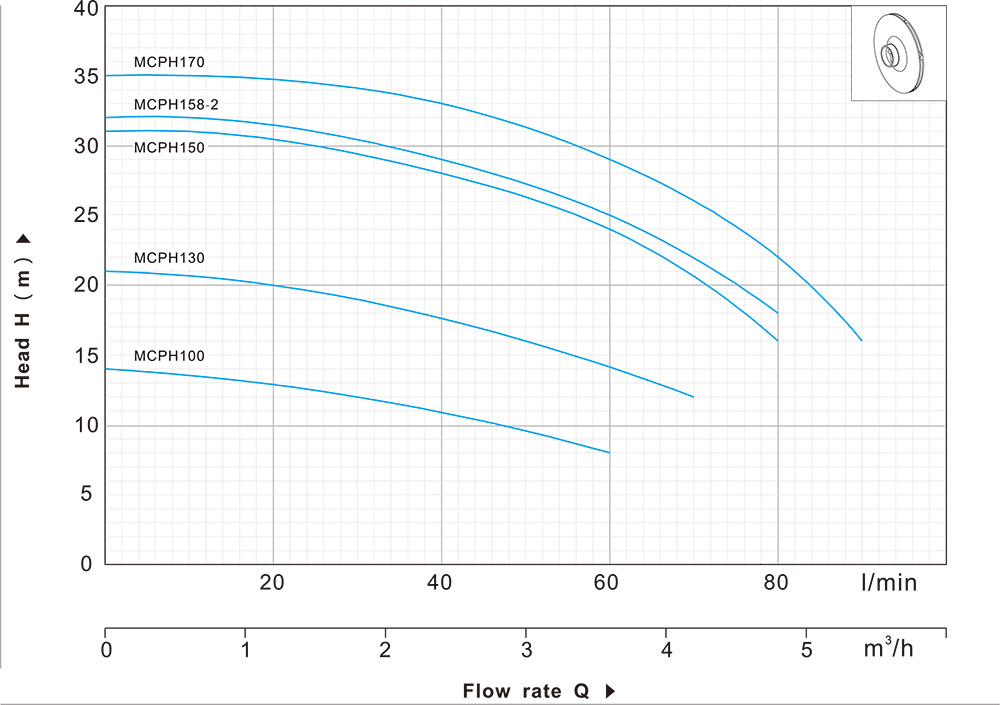

| 型号 | 功率 | 流量 Q |
m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 5.4 | ||
| 单相 | 三相 | KW | HP | l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | |
| MCPH100 | MCH100 | 0.25 | 0.33 | 扬程 H m |
14 | 13.5 | 13 | 12 | 11 | 9.5 | 8 | ||||
| MCPH130 | MCH130 | 0.37 | 0.5 | 21 | 20.7 | 20 | 19 | 17.5 | 16 | 14 | 12 | ||||
| MCPH150 | MCH150 | 0.75 | 1.0 | 31 | 31 | 30.5 | 29.5 | 28 | 26.3 | 24 | 20.5 | 16 | |||
| MCPH158-2 | MCH158-2 | 0.75 | 1.0 | 32 | 32 | 31.5 | 30.5 | 29 | 27 | 25 | 22 | 18 | |||
| MCPH170 | MCH170 | 1.10 | 1.5 | 35 | 35 | 34.8 | 34 | 33 | 31.2 | 29 | 26 | 22 | 16 | ||

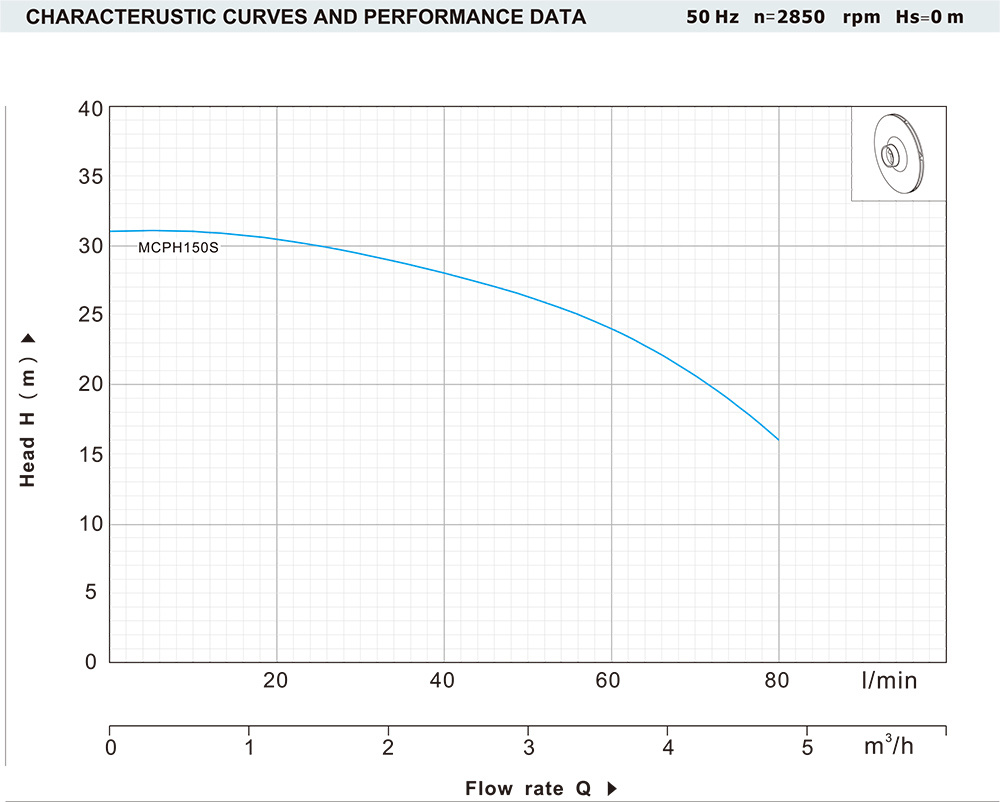

| 型号 | 功率 | 流量 Q |
m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 5.4 | ||
| 单相 | 三相 | KW | HP | l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | |
| MCPH150S | MCH150S | 0.75 | 1.0 | 扬程 H m |
31 | 31 | 30.5 | 29.5 | 28 | 26.3 | 24 | 20.5 | 16 | ||
